Type 40

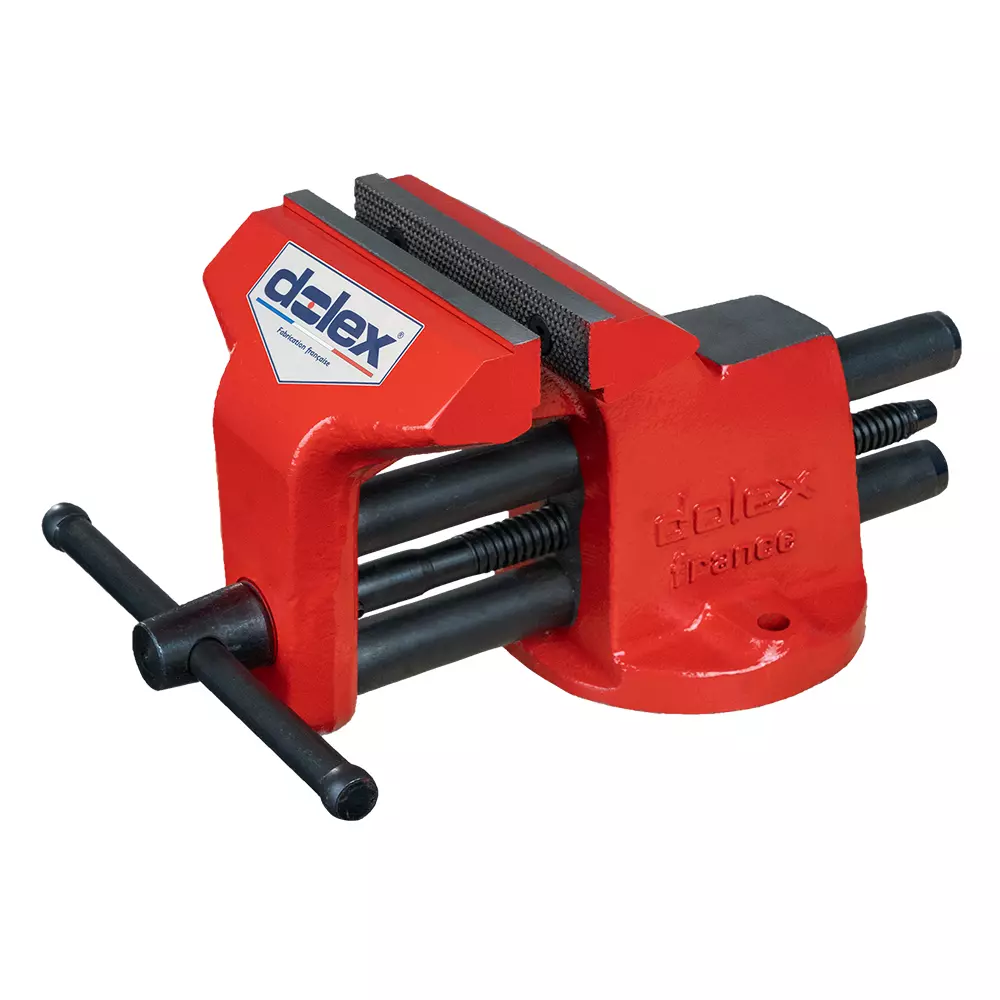

Double-guiding vices Type 40.
Made in France.
Great precision of guiding thanks to two cylindrical guides.
T = swivel base
technical specifications
Very wide clearance of the jaws on both sides of the rods permitting clamping of large and long pieces vertically.
Cast body ; drop forged head.
Drop forged screw with trapezoïdal rolled threads.
Screw and guides entirely black coated.
Renewable inserted jaws of casehardened chromiummolybdenum steel.
Technical data
4 models available in the range
Discover the model that suits you by comparing the technical specifications
| Type | Length (mm) | Width (mm) | Height (mm) | Open (mm) | A (mm) | Minimum/maximum diameter (mm) | L (mm) | Weight (kg) | ||
|---|---|---|---|---|---|---|---|---|---|---|
|
45 | fixe | 264 | 103 | 135 | 135 | 60 | 10/34 | 105 | 5,00 | |
45T | swivel base | 264 | 103 | 150 | 135 | 60 | 10/34 | 105 | 5,60 | |
|
47 | fixe | 360 | 140 | 175 | 185 | 76,5 | 25/65 | 150 | 12,50 | |
|
47T | swivel base | 360 | 140 | 195 | 185 | 76,5 | 25/65 | 150 | 13,50 |
